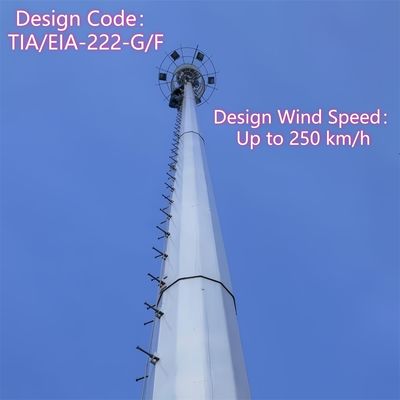

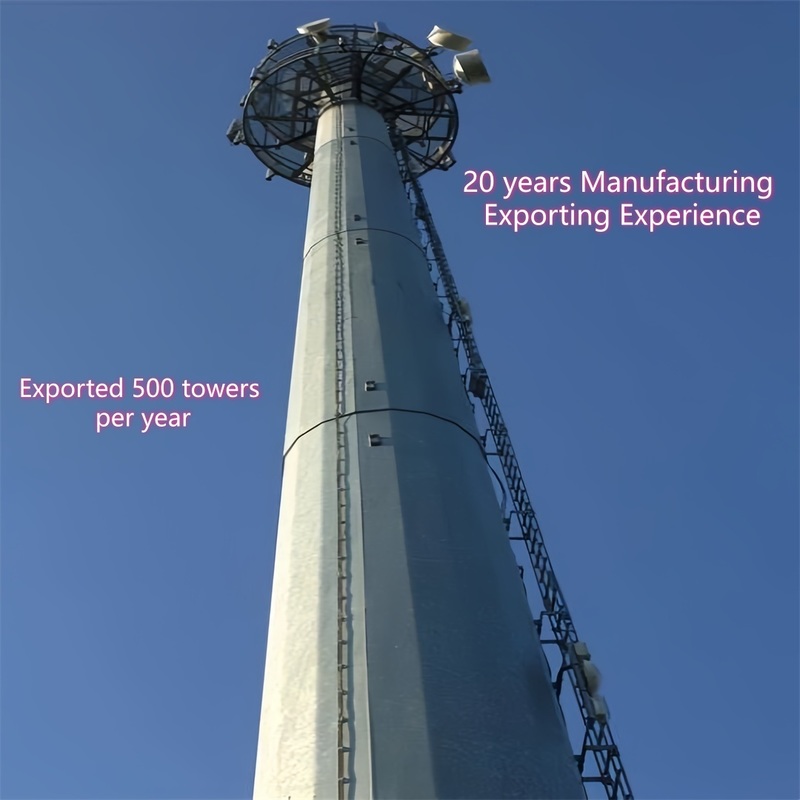

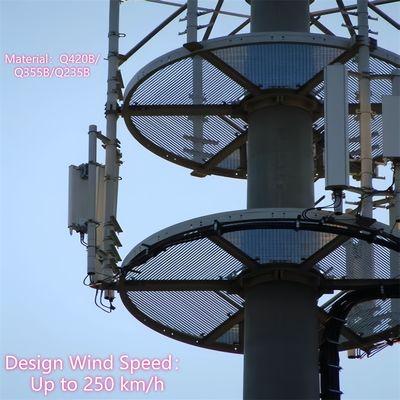

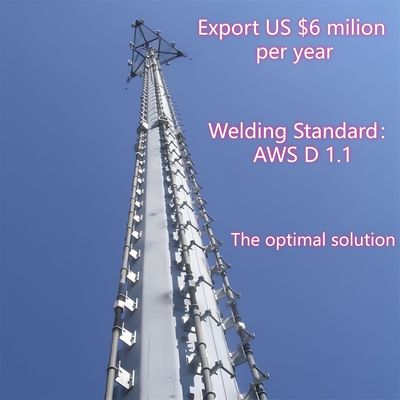

Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof

Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof
Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof
Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof

Gambar besar :  Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof

Detail produk:
Tempat asal: Tiongkok
Nama merek: Jiayao
Sertifikasi: ISO9001:2008 COC
Nomor model: Menara Monopole
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 4 ton
Harga: US$1600,1-100Tons;US$1000,>=100 Tons
Kemasan rincian: Dikemas dalam Kotak Kayu Atau Dibungkus dengan Lembar Galvanis
Waktu pengiriman: 15 hari
Syarat-syarat pembayaran: L/C, T/T
Menyediakan kemampuan: 500 ton per bulan
Kontak bicara sekarang

Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof

Deskripsi
Kode desain: ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1 Sertifikat: ISO 9001: 2008
Perawatan Permukaan Hod: galvanis celup panas Jenis Pasokan: pabrikan
Struktur: Menara Tabung Tunggal Bahan: Q420B/Q355B/Q235B
Instalasi: Sambungan baut Kecepatan angin: >=60m/dtk
Kontrol kualitas: ISO9000 Standar Galvanisasi: ASTM A123/ISO 1461
Aplikasi: Telekomunikasi, penyiaran, dll. Nama Produk: Menara Monopole Tabung Tunggal Baja Karbon 25m Jaringan LTE Daerah Pedesaan Tahan Cuaca
Tinggi: 5-80m Standar Pengelasan: AWSD 1.1
Warna melukis: Disesuaikan

JIAYAO CO., LTD

Product Description

1.key Details:
Place of Origin: Hebei, China (Mainland) ; Brand Name: Jaoyao or OEM ; Model Number: Telecom Tower
Surface treatment: Hot Dip Galvanizied or painted.
2.Packaging & Delivery:
Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements.
Deliver:Shipped in 20 days after payment from Tianjin port
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or steel drum.
3. Technical Data



Design
1. Design Code ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Structure Steel
2. Grade Mild Steel High Tensile Steel
GB/T 700:Q235B, Q235C,Q235D GB/T1591:Q355B, Q355C,Q355D
ASTM A36 ASTM A572 Gr50
EN10025: S235JR, S235J0,S235J2 EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed Up to 250 km/h
4. Allowable deflection 0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa) 360~510 470~630
6. Yield strength (t≤16mm) (Mpa) 355 235
7. Elongation (%) 20 24
8. Impact strength KV (J) 27(20°C)---Q235B(S235JR) 27(20°C)---Q345B(S355JR)
27(0°C)---Q235C(S235J0) 27(0°C)---Q345C(S355J0)
27(-20°C)---Q235D(S235J2) 27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts ISO 898-1
10.2 Nuts ISO 898-2
10.3 Washers ISO 6507-1
11. Standards for Dimensions
11.1 Bolts DIN7990, DIN931, DIN933
11.2 Nuts ISO4032, ISO4034
11.3 Washers DIN7989, DIN127B, ISO7091
Welding
12. Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard AWS D1.1
Marking
14. Method of marking of the members Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts ISO 1461 or ASTM A153
Test
17. Factory test Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending,
Preece test,Hammer test
Capacity
18. Maximum Production Capacity 50,000 TON per annum

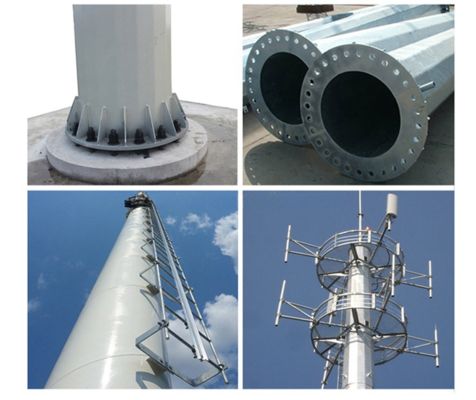

Whta is the Antenna Bracket of monopole tower?

Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof 0

What is the Ladder of Monopole Tower?

Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof 1

What is the cable hole and antenna bracket of monopole tower?

Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof 2



How to fix the feeder in the monopole tower?

Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof 3

How to connect monopole tower with foundation?

Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof 4

How to overlap and install monopole tower?

Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof 5



Please Click Here  For More Information!!!

Production Flow

Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof 6

Customer Visits

Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof 7

Certifications

Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof 8

Please Click Here  For More Information!!!



Customized product types & advantage

Self Supporting Tower 
Self supporting tower usually is 3leg of 4leg tower, and its material is steel pipe or angle steel. As for the connection, tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts. 
Features: 
1.Small coefficient of wind load, strong wind resistance. 
2.Save land resource, convenient location. 
Convenient transportation and installation. 



Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof 9





Pipe Steel Tower
The tube tower refers to a self-supporting high-rise steel structure with a tower column made of steel pipes and a tower body section in a triangular shape. Its main characteristics are that the three tube tower column is made of steel pipes and the tower body section is in a triangular shape, which is a high-rise steel structure different from angle steel.

Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof 10

Monopole Tower 
Single tube tower also called monopole tower, is a commonly used type, with beautiful appearance, covering an small area of 9 to 18 square meter, cost - effective , and is adopted by majority of the construction. Tower body adopt more reasonable section, which is connected through high strength bolt. It has the characteristics of easy installation and can adapt to a variety of complicated field site. 

Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof 11



Guyed Tower 
Guyed tower has a novel appearance,and its biggest characteristic is strengthened by using steel guy wire. Guyed tower is a common type of communication tower which is economical and practical. It is lighter and cheaper than the others. It is very suitable for the geographical wide areas. 

Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof 12

Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof 13Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof 14

Guard Tower
The watchtower is a multifunctional building mainly used for observing the surrounding environment and playing an important role in multiple fields. Its design emphasizes harmony and unity with the natural environment, and the architectural style is usually coordinated with the surrounding environment. Observation towers are usually composed of tower bodies, platforms, towers, and ladders, with compact and durable structures.

Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof 15

Camouflaged Tree Tower
Camouflaged Tree Tower is also a kind of cartificial trees of Bionic tree tower, on base like a real one, plus the meticulous design, when placed among the real trees in sightseeing area, park and square, it will be a part of the nature. 
Features: 
1. Exquisite structure and gorgeous appearance. 
2. Strong structural stability and long working life. 
3. Small area covering and great economic effect.

Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof 16

Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof 17

Our Services

Company Information

JIAYAO CO.,LTD. is a professional telecom tower manufacturer and approved by ISO 9001.we can supply OEM/ODM Manufacturing. JIAYAO has been qualified by SGS classification as well as we have our own import and export license,our products such as angle steel tower, tube steel tower, monopole tower, pine tree tower, guyed tower and guard tower have been exported to USA, Europe and other 55 different counties. It's only two hours' drive from Shijiazhuang airport to JIAYAO.

​Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof 18

Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof 19

Single Tube Monopole Tower Carbon Steel 25m LTE Network Rural Areas Weatherproof 20

If you need it, we will welcome you 24 hours a day!
