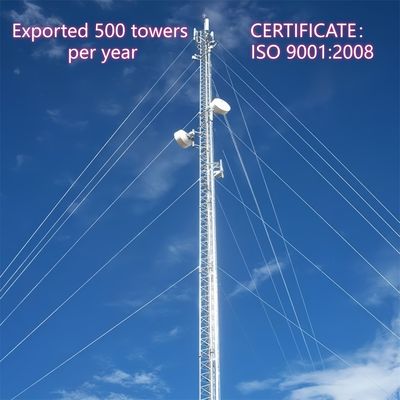

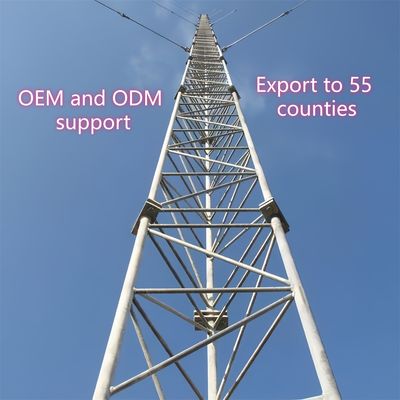

Guy Rope Cell Tower High Strength Steel 35m Mobile Network Suburban Zones Wind Resistant

Name: Guy Rope Cell Tower High Strength Steel 35m Mobile Network Suburban Zones Wind Resistant
Brand: Jiayao Co., Ltd.
SKU: Menara Kawat Guyed
Price: 50.00 USD
Availability: InStock

Semua produk

Menara Baja Sudut Berkaki 3
(45)

Menara Baja Angular Berkaki 4
(54)

Menara Baja Tubular Berkaki 3
(40)

Menara Monopole
(49)

Menara Kawat Guyed
(22)

Menara Penjaga
(15)

Menara Pohon Bionik
(20)

Menara Transmisi Daya
(12)

I 'm Online Chat Now

Guy Rope Cell Tower High Strength Steel 35m Mobile Network Suburban Zones Wind Resistant

Gambar besar : Guy Rope Cell Tower High Strength Steel 35m Mobile Network Suburban Zones Wind Resistant

Detail produk:

Tempat asal:	Tiongkok
Nama merek:	Jiayao
Sertifikasi:	ISO9001:2008 COC
Nomor model:	Menara Kawat Guyed

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	4 ton
Harga:	US$1600,1-100Tons;US$1000,>=100 Tons
Kemasan rincian:	Dikemas dalam Kotak Kayu Atau Dibungkus dengan Lembar Galvanis
Waktu pengiriman:	15-25 hari
Syarat-syarat pembayaran:	L/C, T/T
Menyediakan kemampuan:	500-1000 ton per bulan

Kontak bicara sekarang

Guy Rope Cell Tower High Strength Steel 35m Mobile Network Suburban Zones Wind Resistant

Deskripsi

Standar:	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1	Sertifikasi:	ISO9001:2008 COC
Bahan:	Q345/Q235/Pipa tanpa sambungan/Batang baja ASTM A36 A572 Gr50	Mur & Baut:	Kelas 8.8/6.8/4.8;DIN7990, DIN931, DIN933;ISO4032, ISO4034
Nama:	Menara Telekomunikasi Guyed Wife	Tinggi:	5-100m
Kecepatan angin:	≥ 60M/S	galvanis:	Galvanis yang Dicelup Panas
Seumur hidup:	Lebih dari 20 Tahun	Warna:	sliver atau RAL Color stardand, disesuaikan
Aplikasi:	Menara Komunikasi Seluler	Standar Pengelasan:	AWSD 1.1
Menyoroti:	high strength steel guy rope , 35m mobile network tower , wind resistant guyed wire tower

JIAYAO CO., LTD.

1.Specifications

Design
1. Design Code	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q355B, Q355C,Q355D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2

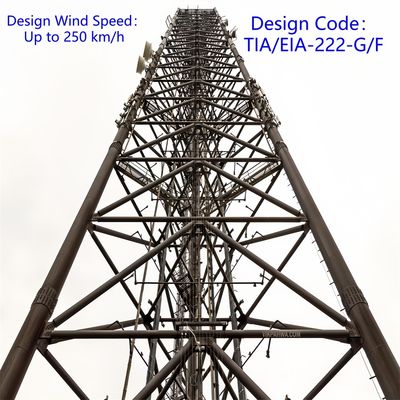

3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153
