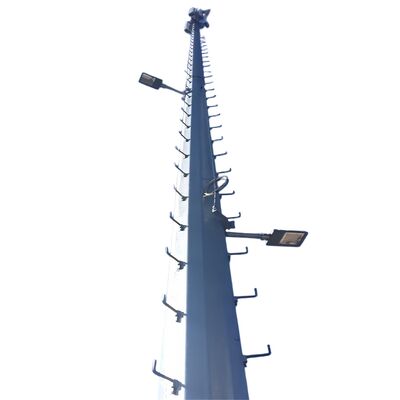

10M 30M 45M 60MCompact Hot Dip Galvanized Monopole Tower 5G Wifi Telecom Rooftop Communication Antenna

Name: 10M 30M 45M 60MCompact Hot Dip Galvanized Monopole Tower 5G Wifi Telecom Rooftop Communication Antenna
Brand: Jiayao Co., Ltd.
SKU: Menara Monopole
Price: 50.00 USD
Availability: InStock

Semua produk

Menara Baja Sudut Berkaki 3
(48)

Menara Baja Angular Berkaki 4
(61)

Menara Baja Tubular Berkaki 3
(45)

Menara Monopole
(53)

Menara Kawat Guyed
(26)

Menara Penjaga
(15)

Menara Pohon Bionik
(25)

Menara Transmisi Daya
(18)

Produk terbaik

Menara Komunikasi Gsm Monopole 20m

Cell Antenna Telecom Hot Dip Galvanized Monopole Tower 10 -60 M

Sinyal Wifi Telepon 5G Stasiun Basis Sel Baja Telecom Monopole Menara 5 10 20 25 30 35 40 Meter

I 'm Online Chat Now

10M 30M 45M 60MCompact Hot Dip Galvanized Monopole Tower 5G Wifi Telecom Rooftop Communication Antenna

Gambar besar : 10M 30M 45M 60MCompact Hot Dip Galvanized Monopole Tower 5G Wifi Telecom Rooftop Communication Antenna

Detail produk:

Tempat asal:	Cina
Nama merek:	Jiayao
Sertifikasi:	ISO9001:2008 COC
Nomor model:	Menara Monopole

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	4 ton
Harga:	US$1600,1-100Tons;US$1000,>=100 Tons
Kemasan rincian:	Dikemas dalam Kotak Kayu Atau Dibungkus dengan Lembar Galvanis
Waktu pengiriman:	15 Hari
Syarat-syarat pembayaran:	L/C, T/T
Menyediakan kemampuan:	500 ton per bulan

Kontak bicara sekarang

10M 30M 45M 60MCompact Hot Dip Galvanized Monopole Tower 5G Wifi Telecom Rooftop Communication Antenna

Deskripsi

Standar:	Inggris Raya / ANSI / TIA-222-G	Bahan:	Q345B/A572
Sertifikasi:	ISO9001:2008 COC	Nama Produk:	Menara Monopole Galvanis Hot Dip Kompak Antena Komunikasi Atap Telekomunikasi Wifi 5G
Tinggi:	5-85M	Kecepatan angin:	>=60m/dtk
Seumur hidup:	Lebih dari 15 tahun	Kode desain:	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Struktur:	Menara Monopole	Warna:	menyesuaikan
Menyoroti:	compact monopole tower 5G telecom , hot dip galvanized monopole tower , rooftop communication antenna monopole

JIAYAO CO.,LTD

Product Description

1.key Details:
Place of Origin: Hebei, China (Mainland) ; Brand Name: Jaoyao or OEM ; Model Number: Telecom Tower
Surface treatment: Hot Dip Galvanizied or painted.
2.Packaging & Delivery:
Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements.
Deliver:Shipped in 20 days after payment from Tianjin port
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or steel drum.

3. Technical Data

Design
1. Design Code	ANSI/TIA-222-G/H/F
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q345B, Q345C,Q3455D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153
Test
17. Factory test	Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test

Capacity
18. Maximum Production Capacity	50,000 TON per annum
