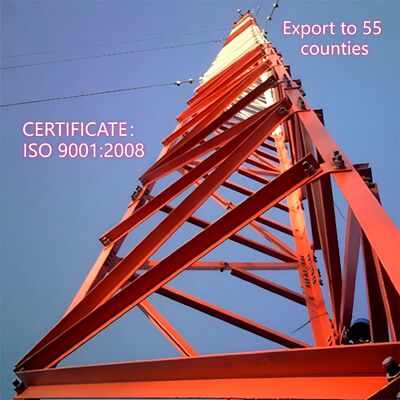

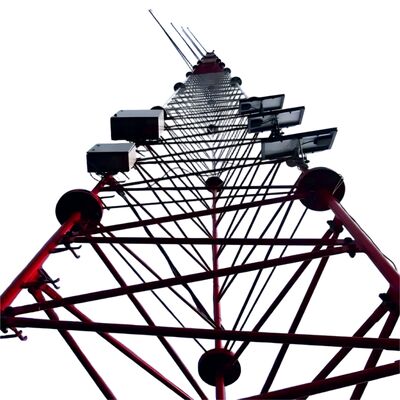

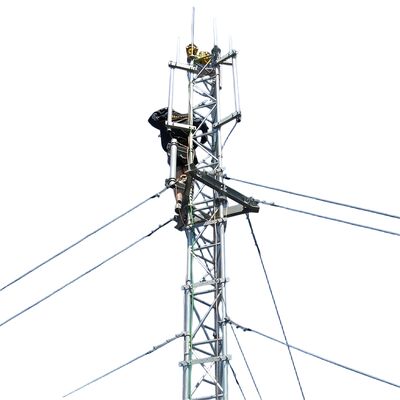

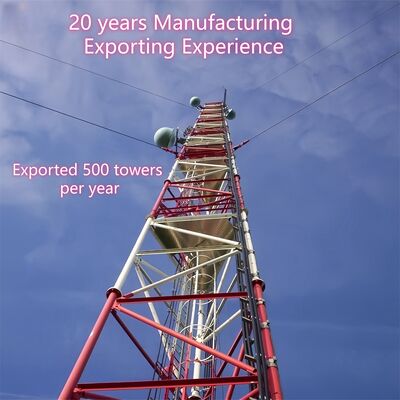

30M 55M 85M Guyed Wire 3 Leg Galvanized Lattice Steel 5G Wifi Isp Internet Microwave Telecommunication Signal Mast

Gambar besar : 30M 55M 85M Guyed Wire 3 Leg Galvanized Lattice Steel 5G Wifi Isp Internet Microwave Telecommunication Signal Mast

Detail produk:

Tempat asal:	Cina
Nama merek:	Jiayao
Sertifikasi:	ISO9001:2008 COC
Nomor model:	Menara Kawat Guyed

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	4 ton
Harga:	US$1600,1-100Tons;US$1000,>=100 Tons
Kemasan rincian:	Dikemas dalam Kotak Kayu Atau Dibungkus dengan Lembar Galvanis
Waktu pengiriman:	15-20 hari
Syarat-syarat pembayaran:	L/C, T/T
Menyediakan kemampuan:	500-1000 ton per bulan

Kontak bicara sekarang

30M 55M 85M Guyed Wire 3 Leg Galvanized Lattice Steel 5G Wifi Isp Internet Microwave Telecommunication Signal Mast

Deskripsi

Nama:	Antena Radio 5G Baja Tabung Galvanis Celup Panas Tiang Telekomunikasi Menara Telekomunikasi	Standar Galvanisasi:	ASTMA123
Bahan:	ASTM A36 Gr50	Mur & Baut:	Kelas 6.8/4.8
Tinggi:	8-100m	Kecepatan angin:	>=60m/dtk
Seumur hidup:	lebih dari 20 tahun	Struktur koneksi:	sambungan flensa/sambungan baut
Perawatan Permukaan:	Galvanis DIP Panas	pengelasan:	AWSD 1.1
Warna:	Bintang Warna RAL dan
Menyoroti:	galvanized lattice steel telecom mast , guyed wire tower for 5G wifi , microwave telecommunication signal mast with warranty

JIAYAO CO., LTD.

1.Specifications

Design

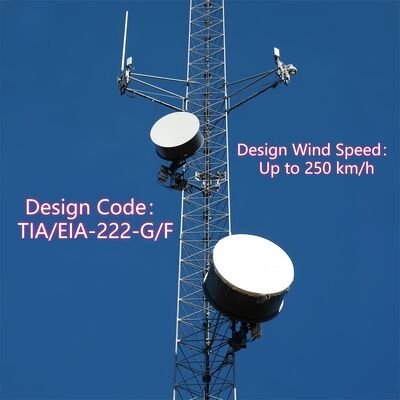

1. Design Code	ANSI/TIA-222-G/H/F
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q355B, Q355C,Q355D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153
