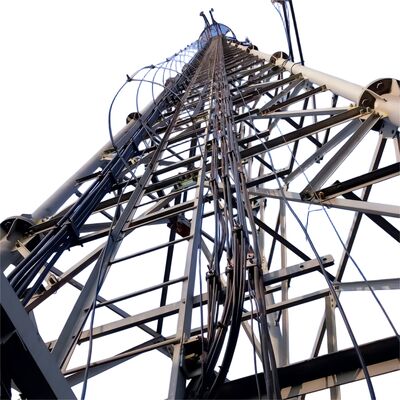

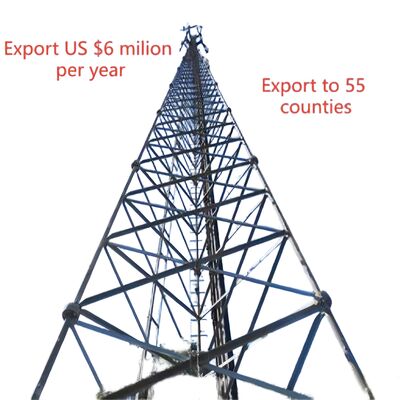

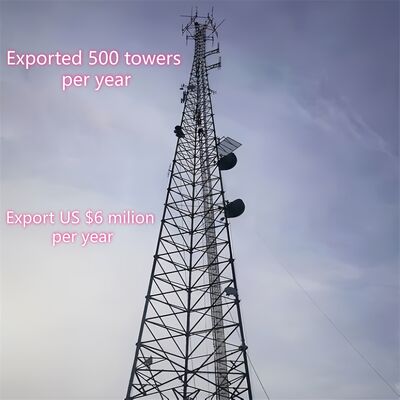

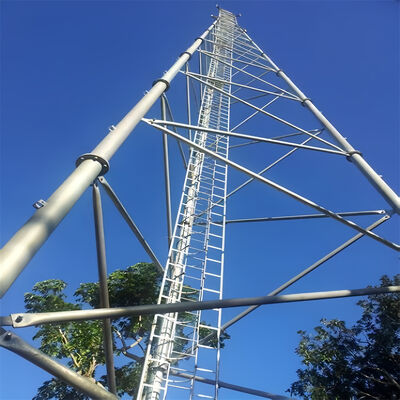

30M 55M 80M Hot Dip Galvanized 3 Leg Tubular Steel Free Standing Gsm Cdma Cellular Communication Antenna Mast

Name: 30M 55M 80M Hot Dip Galvanized 3 Leg Tubular Steel Free Standing Gsm Cdma Cellular Communication Antenna Mast
Brand: Jiayao Co., Ltd.
SKU: Menara Baja Tubular Berkaki 3
Price: 50.00 USD
Availability: InStock

Semua produk

Menara Baja Sudut Berkaki 3
(48)

Menara Baja Angular Berkaki 4
(61)

Menara Baja Tubular Berkaki 3
(45)

Menara Monopole
(53)

Menara Kawat Guyed
(26)

Menara Penjaga
(15)

Menara Pohon Bionik
(25)

Menara Transmisi Daya
(18)

Produk terbaik

Telekomunikasi 3 Leg Tower

Menara Baja Tubular Berkaki 3 di Atap

Menara Seluler Komunikasi Galvanis Celup Panas 3 Kaki

I 'm Online Chat Now

30M 55M 80M Hot Dip Galvanized 3 Leg Tubular Steel Free Standing Gsm Cdma Cellular Communication Antenna Mast

Gambar besar : 30M 55M 80M Hot Dip Galvanized 3 Leg Tubular Steel Free Standing Gsm Cdma Cellular Communication Antenna Mast

Detail produk:

Tempat asal:	Cina
Nama merek:	Jiayao
Sertifikasi:	ISO9001:2008 COC
Nomor model:	Menara Baja Tubular Berkaki 3

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	4 ton
Harga:	US$1600,1-100Tons;US$1000,>=100 Tons
Kemasan rincian:	Dikemas dalam Kotak Kayu Atau Dibungkus dengan Lembar Galvanis
Waktu pengiriman:	15 Hari
Syarat-syarat pembayaran:	L/C, T/T
Menyediakan kemampuan:	500 ton per bulan

Kontak bicara sekarang

30M 55M 80M Hot Dip Galvanized 3 Leg Tubular Steel Free Standing Gsm Cdma Cellular Communication Antenna Mast

Deskripsi

Standar:	ANSI/TIA-222-G-2005	Standar Galvanisasi:	ASTM A123/ISO 1461
Sertifikat:	ISO9001:2008	Bahan:	Baja tubular
Nama:	Pipa Tabung Berkaki 3 Kaki Menara Seluler Telekomunikasi Baja Galvanis Celup Panas Penopang Diri	Tinggi:	8-100M, atau Disesuaikan
Kecepatan angin:	0-160km/jam	Seumur hidup:	lebih dari 20 tahun
galvanis:	Galvanis yang Dicelup Panas	Struktur:	Segitiga
Warna:	Sliver atau kustom
Menyoroti:	Hot Dip Galvanized Steel Antenna Mast , 3 Leg Tubular GSM Mast , Free Standing CDMA Communication Tower

JIAYAO CO., LTD

Product Description

Technical Data

Design
1. Design Code	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1

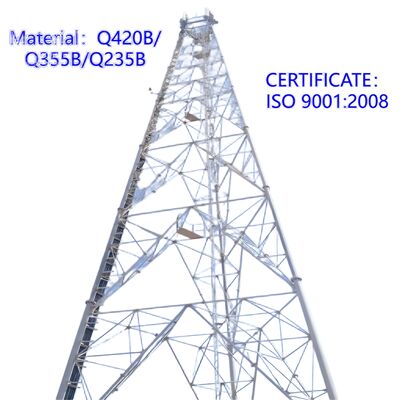

Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q355B, Q355C,Q355D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)

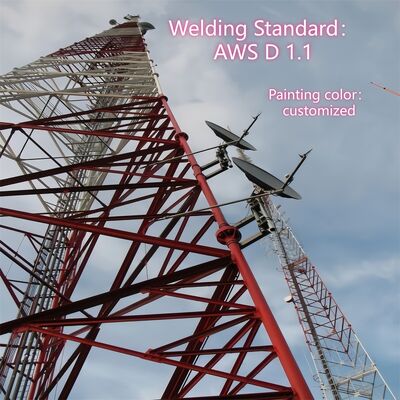

13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153
Test
17. Factory test	Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test
