Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh

Gambar besar : Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh

Detail produk:

Tempat asal:	Cina
Nama merek:	Jiayao
Sertifikasi:	ISO9001:2008 COC
Nomor model:	Menara Monopole

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	4 ton
Harga:	US$1600,1-100Tons;US$1000,>=100 Tons
Kemasan rincian:	Dikemas dalam Kotak Kayu Atau Dibungkus dengan Lembar Galvanis
Waktu pengiriman:	15 hari
Syarat-syarat pembayaran:	L/C, T/T
Menyediakan kemampuan:	500 ton per bulan

Kontak bicara sekarang

Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh

Deskripsi

Standar:	ISO9001:2008	Bahan:	Q345B/A572
Sertifikasi:	ISO9001:2008 COC	Nama Produk:	Menara Monopole Galvanis Hot Dip Menara Komunikasi Atap Telekomunikasi Wifi 5G
Tinggi:	5-85M	Kecepatan Angin:	>=60m/dtk
Seumur hidup:	Lebih dari 25 tahun	Kode Desain:	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Struktur:	Menara Monopole	Warna:	Sesuaikan
Jenis Pasokan:	Pabrikan	Braket Antena:	2-4 pcs
Diameter atas:	0,6 meter	Aplikasi:	Jaringan Seluler, Transmisi Radio
Sistem Pasokan:	Pabrikan	membentuk:	Tabung tunggal
Perawatan permukaan:	Hot galvanis	Jenis pasokan:	Pabrikan
Perawatan Permukaan Hod:	Galvanisasi Celup Panas	tiang antena:	3-10
Metode instalasi:	Rakitan Baut

JIAYAO CO.,LTD

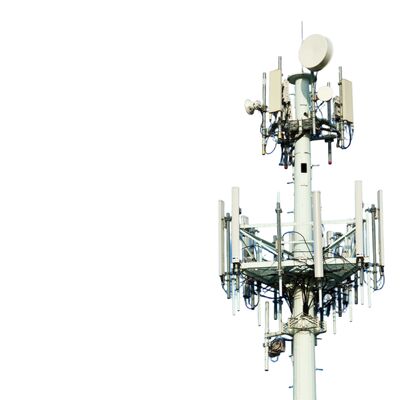

A monopole telecom tower (often called a telecom monopole) is a single-shaft, self-supporting structure tailored for urban and densely populated areas, defined by its compact cylindrical or polygonal shape. Unlike open-truss lattice towers, this tower features a solid/semi-solid single shaft—making it visually unobtrusive and ideal for space-constrained, aesthetic-sensitive locations.

Product Description

1.key Details:
Place of Origin: Hebei, China (Mainland) ; Brand Name: Jaoyao or OEM ; Model Number: Telecom Tower
Surface treatment: Hot Dip Galvanizied or painted.
2.Packaging & Delivery:
Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements.
Deliver:Shipped in 20 days after payment from Tianjin port
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or steel drum.

3. Technical Data

Design

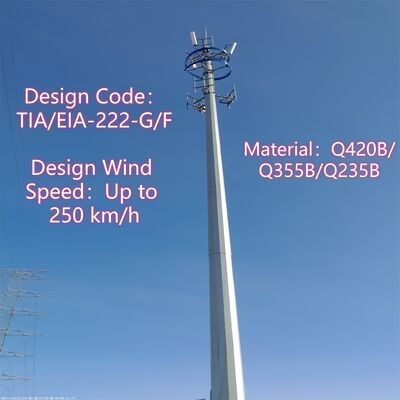

1. Design Code	ANSI/TIA-222-G/H/F
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q345B, Q345C,Q3455D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)

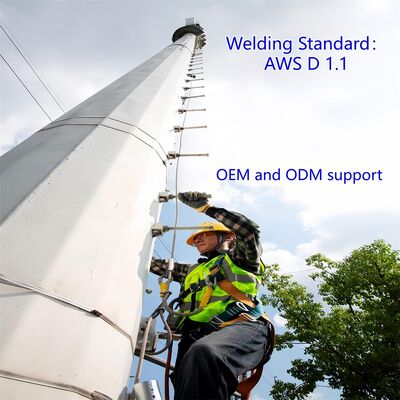

13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153
Test
17. Factory test	Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test

Capacity
18. Maximum Production Capacity	50,000 TON per annum

Core Structural & Design Features

Single-shaft shape: Typically rolled-steel cylindrical (or welded polygonal) shafts, with diameters ranging 0.5–2m (scaled by tower height).
Height range: 10–60m (customizable for 5G microstations or urban communication hubs).

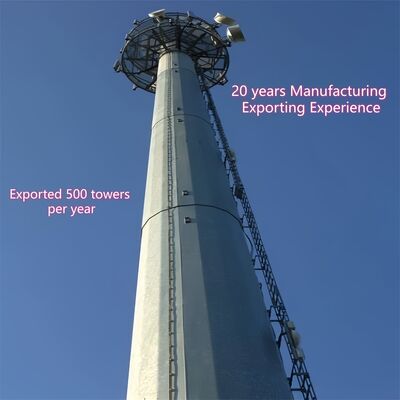

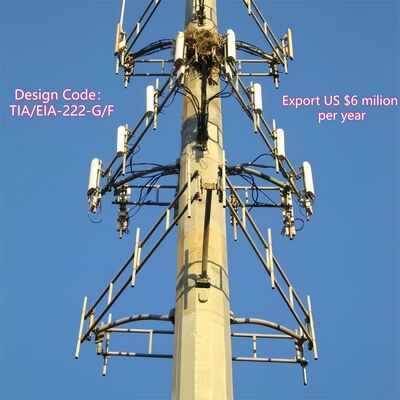

Integrated components: Built-in internal climbing ladders (with fall-arrest systems), external antenna brackets, and optional camouflage (e.g., billboard wraps).
Tapered design: Slightly narrower at the top to optimize wind load resistance (suitable for urban wind conditions up to 180km/h).

⇔What is the main body of monopole tower?

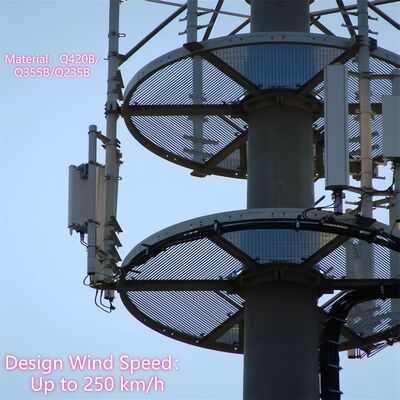

⇔What is the Bottom Flange, Ladder and Platform of monopole tower?

⇔What is the main body of monopole tower after Hot Dip Galvanized?
