Bionic Tree Tower artificial tree tower with ANSI TIA 222 G H F and EN 1991 1 4 EN 1993 3 1 design codes for infrastructure

Gambar besar : Bionic Tree Tower artificial tree tower with ANSI TIA 222 G H F and EN 1991 1 4 EN 1993 3 1 design codes for infrastructure

Detail produk:

Tempat asal:	Cina
Nama merek:	Jiayao
Sertifikasi:	ISO9001:2008 COC
Nomor model:	Menara Pohon Bionik

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	4 Ton
Harga:	US$1400-1600,1-100Tons;US$1000-1200,>=100 Tons
Kemasan rincian:	Dikemas Dalam Kotak Kayu Atau Dibundel Dengan Lembaran Galvanis
Waktu pengiriman:	15 hari
Syarat-syarat pembayaran:	L/C, T/T
Menyediakan kemampuan:	500 ton per bulan

Kontak bicara sekarang

Bionic Tree Tower artificial tree tower with ANSI TIA 222 G H F and EN 1991 1 4 EN 1993 3 1 design codes for infrastructure

Deskripsi

Nama Produk:	Menara Pohon Bionik 25M	Bahan:	Bahan Baja dan Komposit
Mur & Baut:	Kelas 8.8/6.8/4.8	Sertifikasi:	ISO9001:2008 COC
Tinggi:	10-40Meter	Standar:	ANSI/TIA-222-G/H/F
Kecepatan Angin:	5-40KM/JAM	Standar Galvanisasi:	ASTM A123/ISO 1461
Dampak Lingkungan:	Ramah lingkungan	Perawatan anti-korosi:	galvanis yang dicelup panas
Seumur hidup:	Lebih dari 20 Tahun	Pengelasan:	AWS D 1.1
Membentuk:	Seperti pohon	Estetika:	Penampilan alami dan realistis
Jenis:	Taman Vertikal Perkotaan	Waktu instalasi:	Kurang lebih 3 bulan
Produsen:	Solusi Kota Bionic	Spesies pohon:	Berbagai spesies asli
Warna:	sliver atau RAL Color stardand, disesuaikan
Menyoroti:	Bionic Tree Tower with ANSI TIA 222 , Bionic Tree Tower EN 1991 design , artificial tree tower infrastructure compliance

Bionic Tree Tower artificial tree tower with ANSI TIA 222 G H F and EN 1991 1 4 EN 1993 3 1 design codes for infrastructure 0

JIAYAO CO., LTD

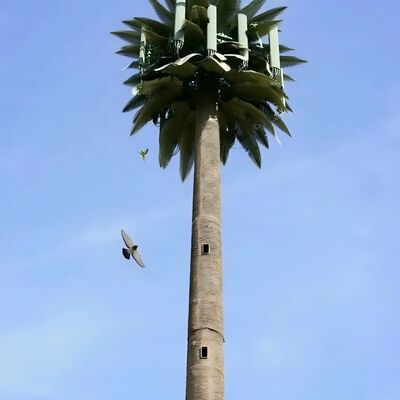

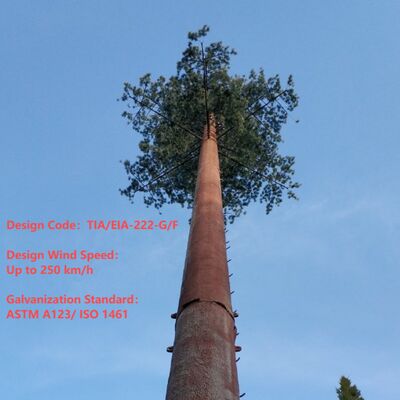

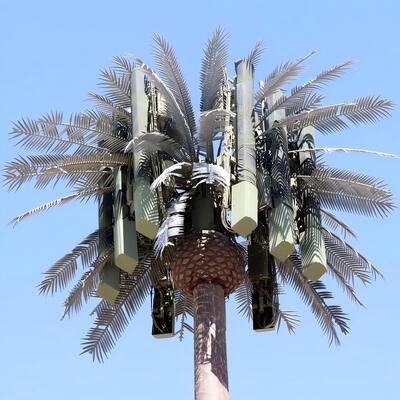

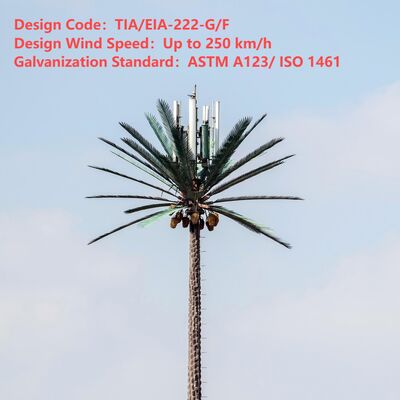

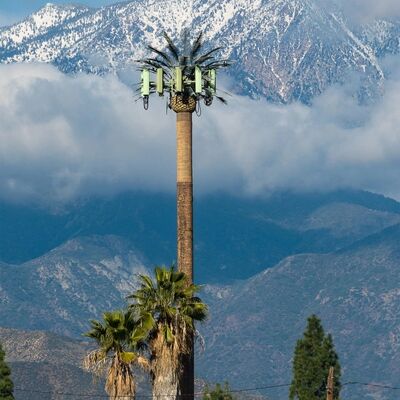

Bionic tree tower, also known as an artificial tree tower, is an innovative structure designed to replicate the look of natural trees while serving critical infrastructure purposes. Unlike traditional towers that often stand out visually, this tower blends seamlessly into landscapes, making it a preferred choice for areas where aesthetic harmony and functionality are both priorities.

1.Specifications

Design
1. Design Code	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q355B, Q355C,Q355D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153

Core Structural & Design Features

Tree-Like Appearance: It features artificial trunks, branches, and even leaves made from durable materials like fiberglass or high-strength plastics, closely resembling real trees in shape, color, and texture.
Modular Construction: The tower is built with modular components, allowing customization in height (typically 5m to 30m) and “tree species” to match local flora, such as pine, palm, or oak trees.
Integrated Functionality: Equipped with hidden platforms, antenna mounts, and cable management systems to support telecommunications equipment (5G/4G antennas, microwave devices), environmental sensors, or even small wind/solar energy harvesters.

Key Materials & Manufacturing Standards

Primary Materials: High-quality fiberglass, UV-resistant plastics, and galvanized steel for the internal support structure, ensuring both durability and corrosion resistance.
Manufacturing Compliance: Follows industry standards like ASTM D256 for impact resistance of plastic components and ISO 1461 for galvanization, guaranteeing long-term performance in outdoor conditions.
Aesthetic Details: Leaves and branches are designed to withstand extreme weather (high winds, heavy snow) and maintain colorfastness for years, using advanced pigmentation techniques.

2.Product Detail
