High Voltage 220KV 500KV Galvanized Angle Steel Power Transmission Tower Suspension Utility Pole

Gambar besar : High Voltage 220KV 500KV Galvanized Angle Steel Power Transmission Tower Suspension Utility Pole

Detail produk:

Tempat asal:	Cina
Nama merek:	Jiayao
Sertifikasi:	ISO9001:2008 SGS COC
Nomor model:	Menara Transmisi Listrik

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	4 ton
Harga:	>=4 Tons,US$1600;>=100 Tons,US$1000
Kemasan rincian:	Dikemas dalam Kotak Kayu Atau Dibungkus dengan Lembar Galvanis
Waktu pengiriman:	15-25 hari
Syarat-syarat pembayaran:	L/C, T/T
Menyediakan kemampuan:	500 -1000ton per bulan

Kontak bicara sekarang

High Voltage 220KV 500KV Galvanized Angle Steel Power Transmission Tower Suspension Utility Pole

Deskripsi

Bahan:	Sudut Baja Q235B Q355B Q420B	Sertifikat:	ISO 9001: 2008
Tinggi:	5-100M, dapat disesuaikan	Seumur hidup:	Lebih dari 30 tahun
Aplikasi:	Telekomunikasi, transmisi listrik	Nilai Tegangan:	10KV 66KV 132KV 220KV 380KV 400KV 750KV 1000KV
Kode desain:	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1	Perawatan Permukaan Hod:	galvanis celup panas
Instalasi:	Sambungan baut	Warna:	Disesuaikan
Menyoroti:	220KV galvanized power transmission tower , 500KV suspension utility pole , angle steel transmission tower

JIAYAO CO., LTD

1.Product Description

Height	From 10M-120M or according to client’s requirement
Suit for	Electric Power Transmission and Distribution
Shape	Polygonal,Conical
Material	Normally Q235B Q355B/A36,Yeild Strength≥235MPa
	Q345B/A572,Yeild Strength≥345MPa
	As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400
Power Capacity	10kV to 600kV
Tolerance of the dimension	According to client’s requirement

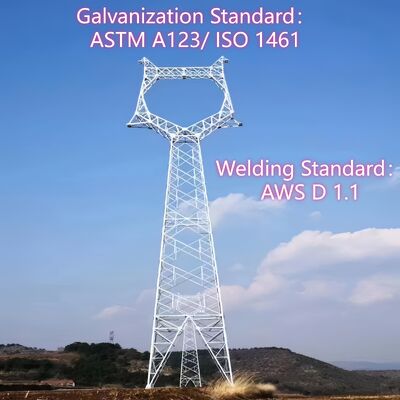

Surface treatment	Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement
Joint of Poles	Slip joint, flanged connected
Standard	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Length of per section	Within 14M once forming
Welding Standard	AWS D 1.1
Production Process	Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages
Packages	Packing with plastic paper or according to client’s requirement
Life Period	More than 25 years, it is according to installing environment

Installation, construction, testing

Style display

Accept customer customization requirements

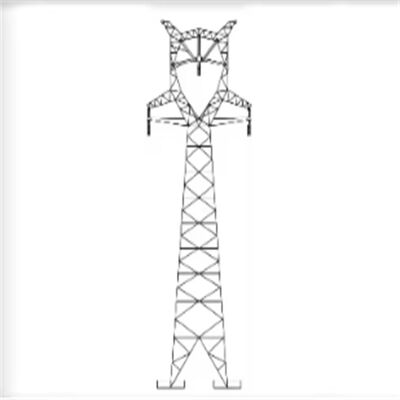

Wine cup Type
Usually used for 110 kVand above voltage levelpower transmission linesespecially suitable forheavy ice area or multi-thunder area.

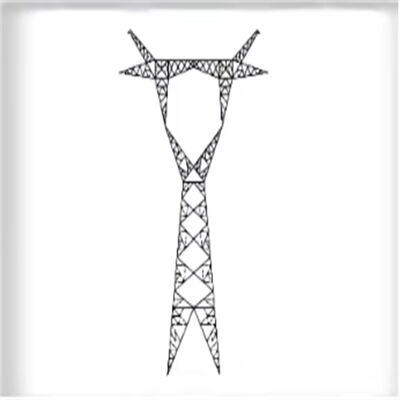

Cat's Head Type
It is a common towertype for power trans-mission lines of 110 kVand above voltage level.lts advantage is that itcan effectively save theline corridor.

'T' 'F''H'Type
Mainly used as tension-resistant tower and cornertower, it is the commonlyused tower type for 220kVand above voltage levelpower transmission lines.

Drum Type
It is a double circuit towercommonly used towertype, the conductor isdrum-shaped arrangementand thus the name.
