10KV 380KV Power Transmission Tower Hot Dip Galvanized Lattice Angle Steel High Voltage Utility Pole

Gambar besar : 10KV 380KV Power Transmission Tower Hot Dip Galvanized Lattice Angle Steel High Voltage Utility Pole

Detail produk:

Tempat asal:	Cina
Nama merek:	Jiayao
Sertifikasi:	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Nomor model:	Menara Transmisi Listrik

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	4 ton
Harga:	>=4 Tons,US$1600;>=100 Tons,US$1000
Kemasan rincian:	Dikemas dalam Kotak Kayu Atau Dibungkus dengan Lembar Galvanis
Waktu pengiriman:	15-25 hari
Syarat-syarat pembayaran:	L/C, T/T
Menyediakan kemampuan:	500 -1000ton per bulan

Kontak bicara sekarang

10KV 380KV Power Transmission Tower Hot Dip Galvanized Lattice Angle Steel High Voltage Utility Pole

Deskripsi

Bahan:	baja galvanis	Sertifikasi:	ISO9001:2008 SGS COC
Tinggi:	5-100M, dapat disesuaikan	Kecepatan angin:	>=60m/dtk
Seumur hidup:	Lebih dari 20 tahun, itu sesuai dengan lingkungan pemasangan	Aplikasi:	Penyiaran
Nilai Tegangan:	66KV-1000KV	Perawatan Permukaan:	Galvanis DIP Panas
Standar Galvanisasi:	ASTM A123/ISO 1461	Warna:	Bintang Warna RAL dan
Menyoroti:	10KV hot dip galvanized power transmission tower , 380KV lattice angle steel utility pole , high voltage power transmission tower with warranty

JIAYAO CO., LTD

1.Product Description

Height	From 10M-110M or according to client’s requirement
Suit for	Electric Power Transmission and Distribution
Shape	Polygonal
Material	Normally Q355B/A36,Yeild Strength≥235MPa
	Q345B/A572,Yeild Strength≥345MPa
	As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400
Power Capacity	10kV to 500kV
Tolerance of the dimension	According to client’s requirement
Surface treatment	Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement
Joint of Poles	Slip joint, flanged connected
Standard	ISO9001:2008
Length of per section	Within 13M once forming
Welding Standard	AWS(American Welding Society)D 1.1
Production Process	Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages
Packages	Packing with according to client’s requirement
Life Period	More than 30 years, it is according to installing environment

Installation, construction, testing

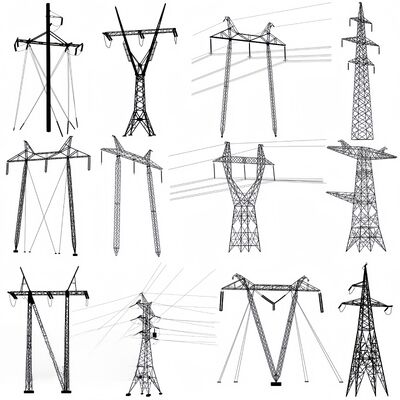

Style display

Accept customer customization requirements

Wine cup Type
Usually used for 110 kVand above voltage levelpower transmission linesespecially suitable forheavy ice area or multi-thunder area.

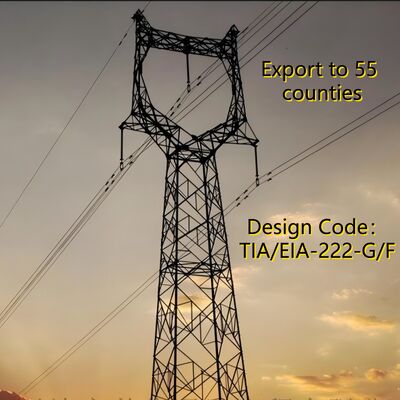

Cat's Head Type
It is a common towertype for power trans-mission lines of 110 kVand above voltage level.lts advantage is that itcan effectively save theline corridor.

'T' 'F''H'Type
Mainly used as tension-resistant tower and cornertower, it is the commonlyused tower type for 220kVand above voltage levelpower transmission lines.

Drum Type
It is a double circuit towercommonly used towertype, the conductor isdrum-shaped arrangementand thus the name.
